Craft Series Double Wall Washer

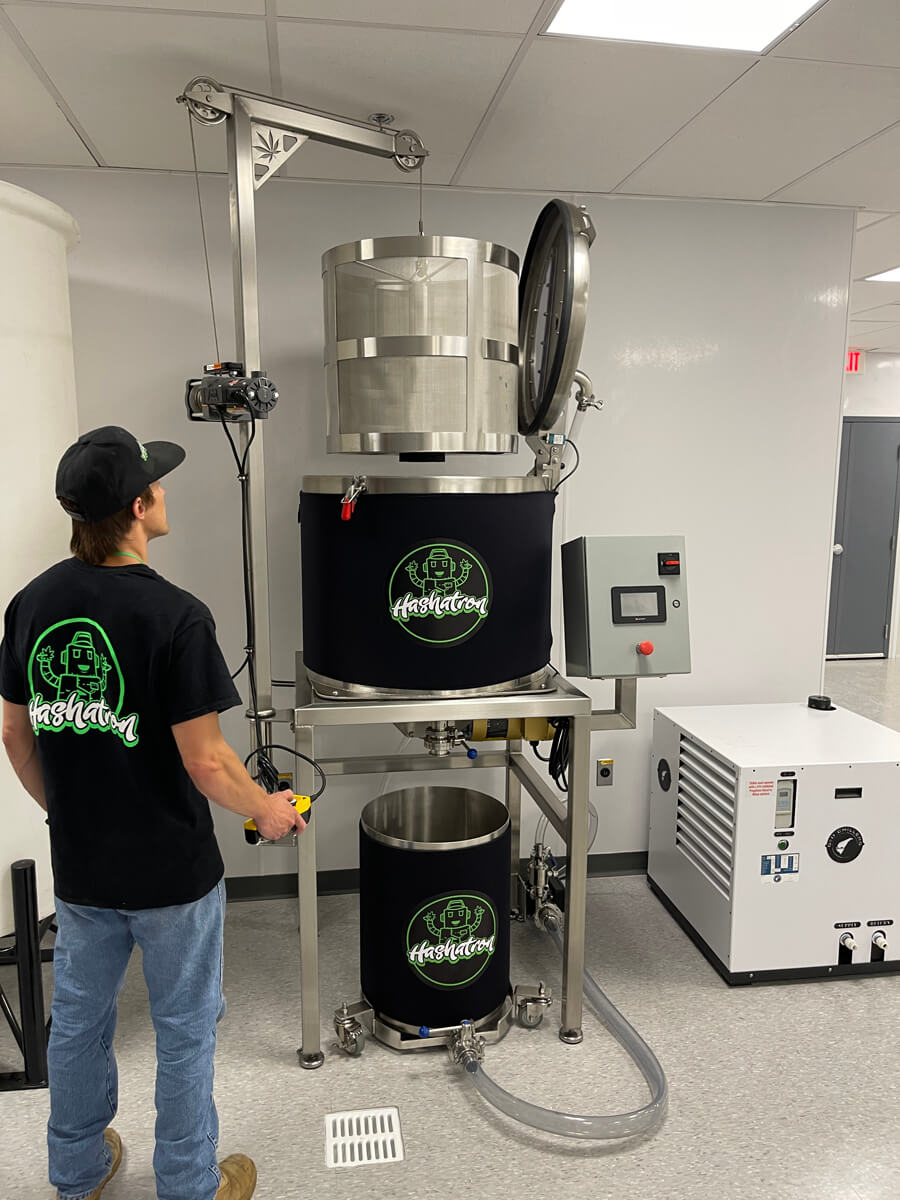

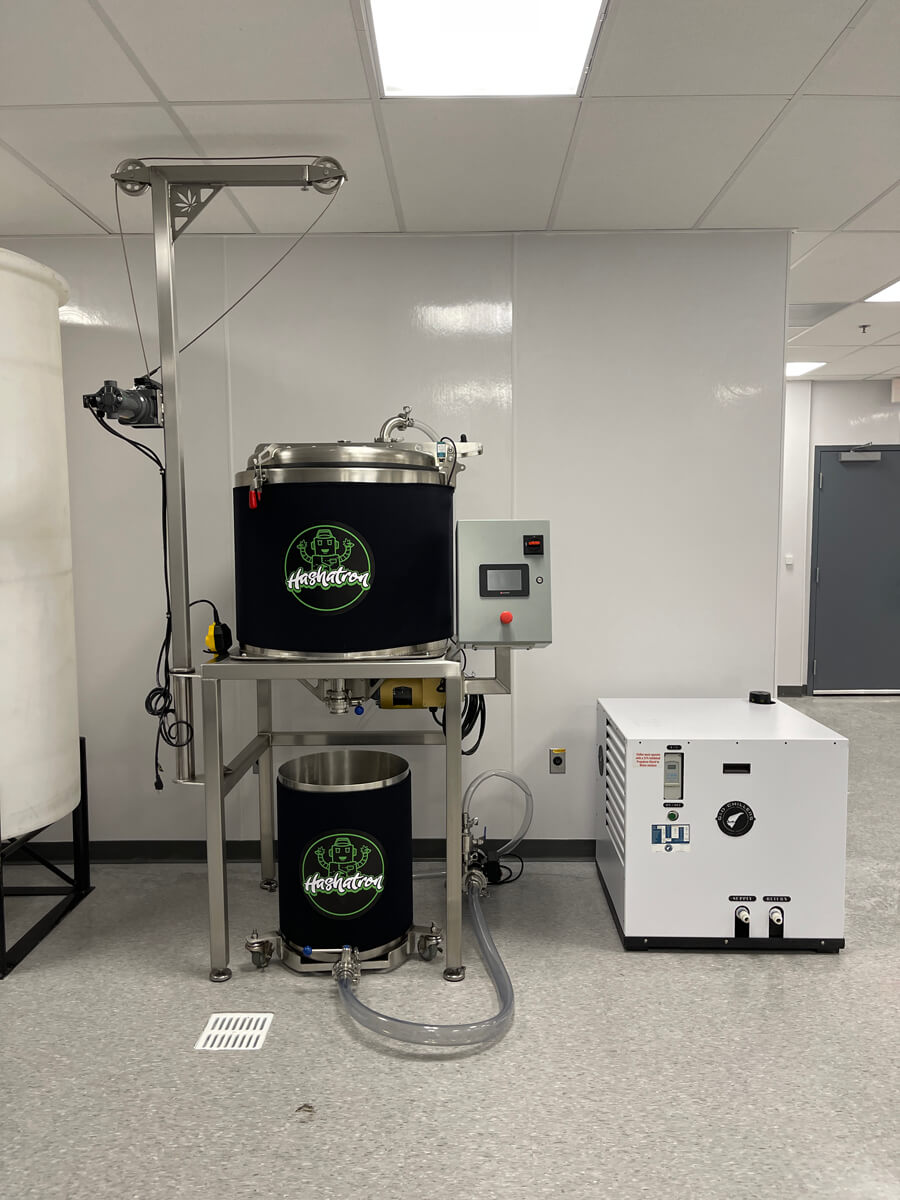

Want to automate your craft washing operation without sacrificing quality? Our craft series washers are a powerful easy to use single operator washer capable of quick cycle time and reduced labor over conventional manual washing. All craft series washer utilize our patent pending removeable stainless steel wash basket eliminating the need for fragile nylon wash bags. Our stainless steel wash basket also allows for unmatched water removal of spent product once the wash cycle is complete by allowing the operator to spin out water from waste product prior to disposal. Since one size does not fit all and bigger sometimes isn’t always better our line of craft series washers are fabricated in sizes from 20 to 200 gallons. All washers kits come complete with the following equipment.

DOWNLOAD SPEC SHEET

Standard Equipment

  • Double wall washing vessel with manual opening and
    locking lid with full view poly carbonate sight window.
  • Wash down grade motor with gear reduction.
  • Stainless steel removable washing basket with internal
    paddle mounts.
  • 4 standard removable paddles.
  • Hashatron color touch screen control cabinet with wash recipe creation, recirculation pump and high speed dry cycle de watering settings.

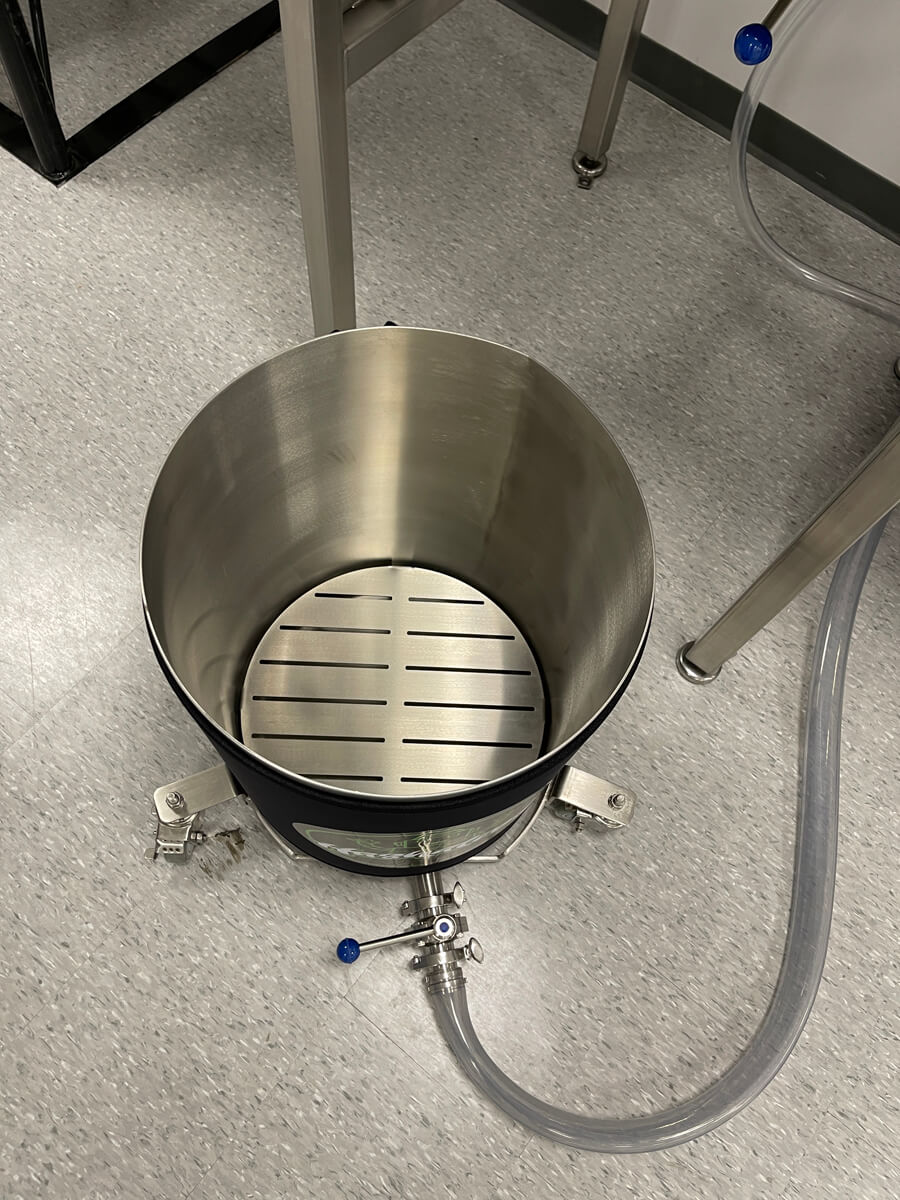

  • Single wall collection vessel with false floor & drain valve kit
  • 1.5” Electric closed loop pump and hose kit
  • Pelle Polar Neoprene insulation jackets on washer & collection vessel
  • 1 year parts & labor warranty

Recommended Fresh Frozen Capacities

  • 20 Gallon 4,000 grams
  • 44 Gallon 8,000  grams
  • 50 Gallon 11,000 grams
  • 65 Gallon 13,000 grams
  • 80 Gallon 15,000 grams
  • 100 Gallon 20,000 grams
  • 150 Gallon 28,000 grams
  • 200 Gallon 38,000 grams

Optional Equipment

  • Powered basket removal lift arm
  • Pelle Polar nylon full mesh bubble bag collection kit
  • Pre Chill vessel system with pressurized cold water spray kit
  • Vibratory collection vessel with stainless steel collection sieves
  • Wash basket clean out station
  • Spare wash basket
  • CIP System
